Mould laser welding machine

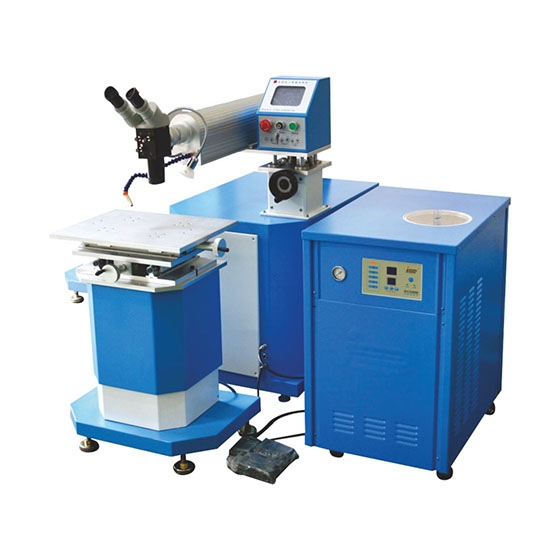

Sample picture

Sample picture

Products parameters

Mould laser welding machine
The working principle of laser mold welding machine is a high-energy laser and focus spot welding technology, effectively deal with all the tiny part of the welding and repair work, make up the traditional TIG welding technology in the lack of fine surface repair. The two thresholds of thermal strain and post-treatment are avoided, the production cycle of the die is greatly saved, the working characteristic of the utility model is stable, the welding parameter can be precisely adjusted and controlled, the welding heat is less, and the welding strength is very high.
Can be widely used in molds, hardware, casting, machinery, parts manufacturing and other industries of high precision defect repair and high-quality pulsed micro beam welding, is a more professional, more sophisticated welding equipment.
Scope of application
Cold high alloy steel, high alloy steel, hot forging tool steel, high nickel steel, copper alloy, beryllium copper, high toughness Aluminum Alloy metal materials.

wavelength

1064nm

maximum power

200W

Power

1200W

pulse width

0.1-20ms

Laser frequency

0.1-30Hz

Spot adjustment range

0.3-2mm

Aiming location

Cross cursor and red light (optional camera system CCD)

Collector cavity emitter

English ceramic condenser chamber

Chiller power

1.5P

positioning accuracy

±0.02mm

supply voltage

220V/ single-phase /50Hz/30A

Table travel

100mm*120mm

Cooling-water machine

400*650*700mm
